6'' (6 inch) connection parts Perrot/Cardan/Type C
available with any desired quick coupling.
Can be used immediately
Float switch (start/stop system)
PUMPED UP AND READY TO FLOW!
Spare parts available, usually in stock
Suitable for pumping sewage
Suitable for pumping surface water / construction site water
Supported by van vacuum pump
Know exactly what you need using our comprehensive calculators.
Formulas used are based on the Hazen-Williams model. Mentioned values are based on clean water with a temperature of approximately 20oC. Resistance caused by any fittings in the pipe system is not taken into account. The results are indicative and no rights can be derived from them. If in doubt, please contact us.

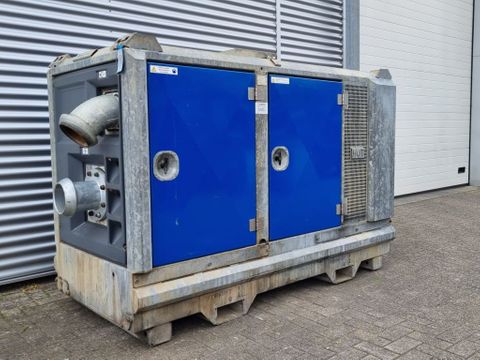

BA150E D285 This 6 inch diesel-driven waste water pump has been the best-selling model from the BA series for years. This pump set is compact and multifunctional due to its unique pump curves and large dirt passage. Common applications: sewage and waste water, surface water, ballast projects.
Capacity up to 470 m3/h and pressure up to 30 mwk 80 mm bore and wear plate with cutting grooves.
Press x Suction (inches) 6" x 6" max. capacity (m3/hour) 470 max. head (mwc) 30 Dirt passage (mm) 80 Vacuum system (m3/hr) MP50 (50 m3/hr) Diesel engine Perkins max. speed (rpm) 1900 Fuel consumption at BEP (l/h) 9 Sound level (dB at 10 m) 64 Dimensions l x w x h (mm) 2270 x 1050 x 1595 Dry weight (kg) 1600
Throughput capacity: 470 m3/h Max dirt passage: 80 mm Motor brand: Perkins Max. head: 37 MWK Weight: 2150 kg
